Customized Coil Transport Solutions: Partnering with Tanzania’s customer for Sustainable Growth

Overview

A well-known enterprise in Tanzania(Hereinafter referred to as the Customer) approached us with a clear objective: to source high-performance coil carrier semi-trailers that combine safety, durability, and cost-efficiency. What began as a single order evolved into a long-term partnership built on precision engineering and unwavering commitment.

The Challenge

Transporting heavy steel coils from port to plant requires equipment that is both robust and economical. Customer needed trailers that could handle demanding conditions while optimizing their total cost of ownership. Initial designs posed logistical challenges, and the customer required a supplier capable of adapting quickly without compromising quality.

Our Approach

At Green Power Vehicle, we focus on creating integrated logistics solutions that align with our clients’ operational and financial goals.

· Needs Assessment & On-Site Survey

Before production, our engineering team visited Customer’s facility to take detailed measurements and assess operational conditions. This ensured the trailers would integrate seamlessly into their workflow.

The Quotation of 9 Meters Tri-Axle Flatbed Semi-Trailer
For PI No.25W-WAC-015GJ
Semi-trailer BrandGPV
Trailer BodyTrailer Size8950*2550*2250
Capacity30,000 kg
Longitudinal Beam480 mm
I-beamQ345 12/10/16 mm
FrameWith Frame to fit coil
Runing GearAxleFUWA 13T*3
The Suspension SystemMechanical suspension
Leaf Spring90*16-8 pieces
Tire12R22.5 *13 Double Coin 18PR
RimChina Brand 9.0-22.5 *13
LandingGearJOST E100
KingpinJOST 2" bolton type
Brake system2 lines air brake with air tank
Relay valveWABCO
ABSWITHOUT
ChamberT30/30 on rear two axle;T30 on first one axle
Tool Box1000 mm 1 Set
Oil TankWITHOUT
Spare Tire Rack2Set
Lights24V, LED
ColorWhite

· Design Innovation for Cost Efficiency

When the first design proved unsuitable for container shipping, our team revised the specifications to allow efficient containerization—dramatically reducing shipping costs while preserving structural integrity.

· Quality Manufacturing & Inspection

All trailers were produced within three weeks and underwent strict quality checks prior to shipment.

· Dedicated After-Sales Support

Upon receipt, when minor damage was found to some components, we promptly honored our warranty and resolved the issue—reinforcing our promise of reliability.

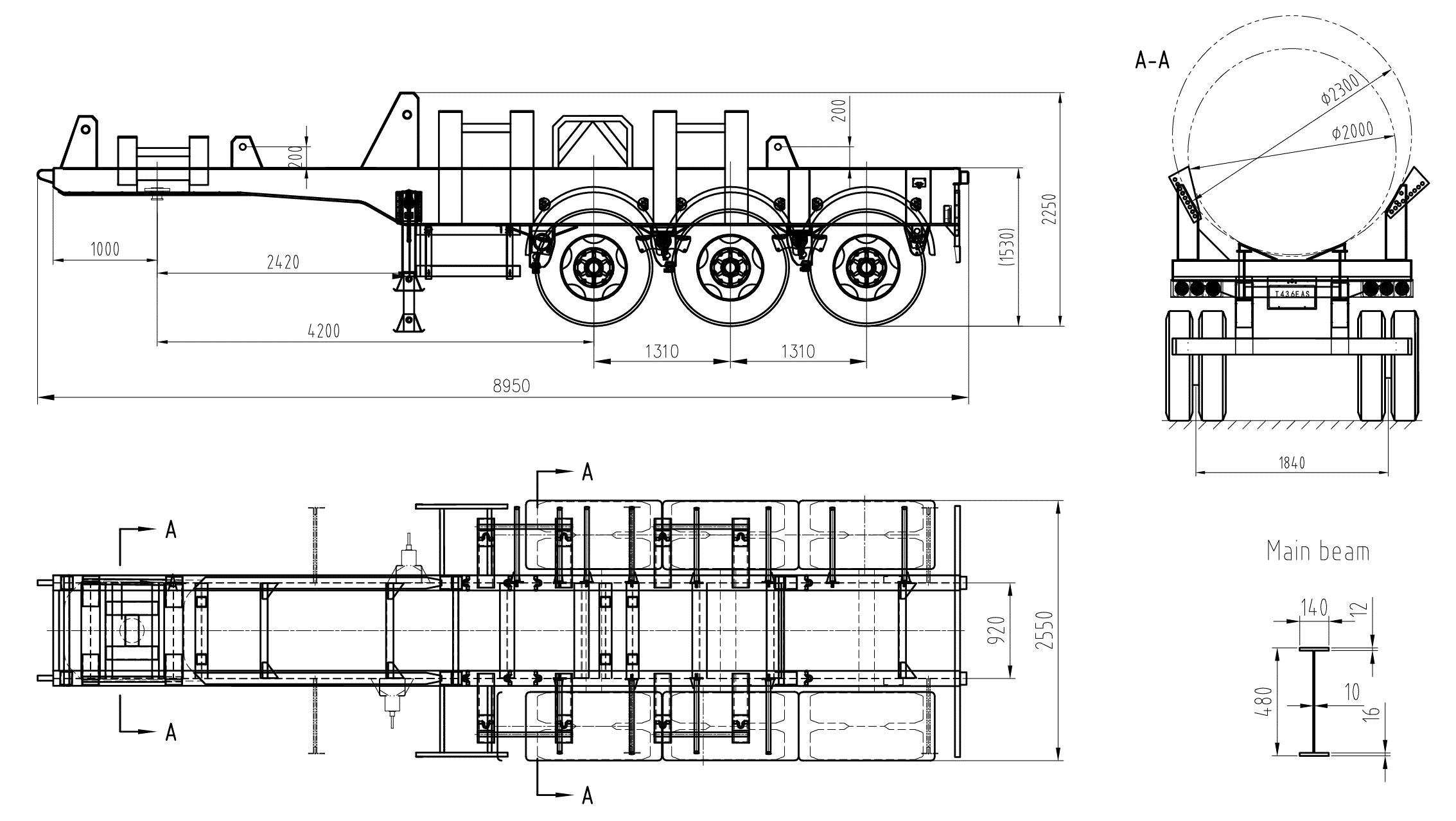

Upon arrival, we provided the customer with detailed assembly layout drawings and offered continuous guidance on site to ensure a smooth and efficient assembly process.

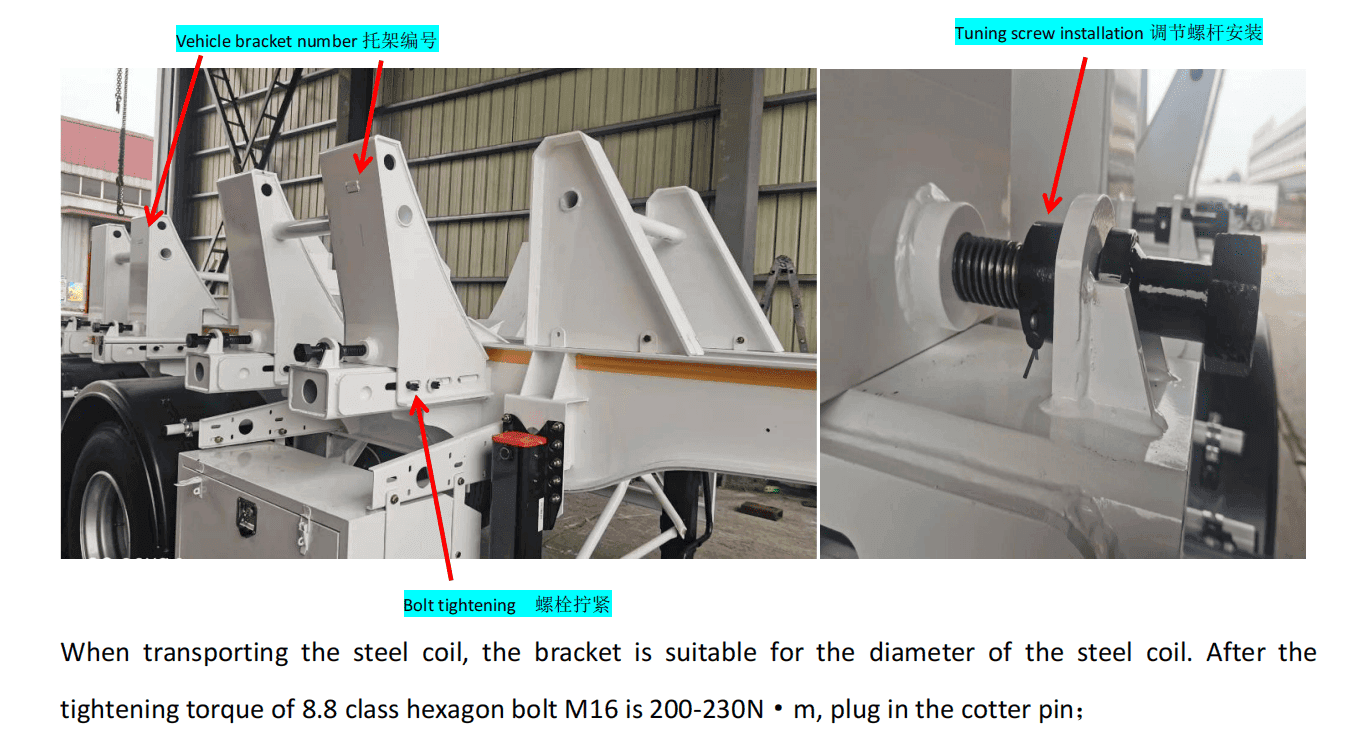

Installation Guide

Results Delivered

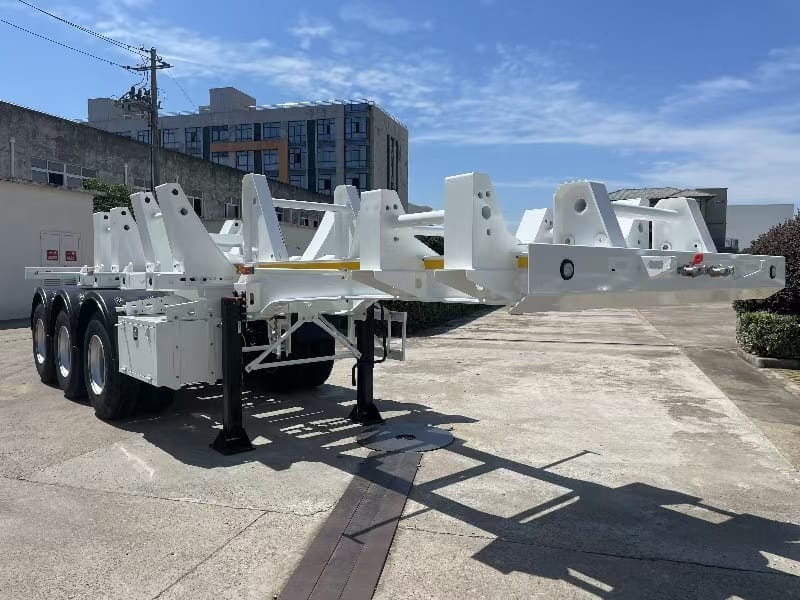

· Successfully delivered 10 customized coil carriers that fully met load-bearing and operational requirements.
· Achieved significant savings for the customer through redesigned container-compliant trailers.
· Received two repeat orders in 2024 for an additional 16 trailers, bringing the total to 26 units.
· Established a trusted partnership that continues to drive mutual growth.

What Our Client Says

“We value suppliers who understand our business and respond with agility. GPV Tanzania delivered exactly that—a reliable product and a collaborative partnership.”
— Management Team, Tanzania’s Customer
