CIMC 3 Axles 40FT Flatbed Semi Trailer

40FT 3 Axle Flatbed Semi Trailer is a common cargo transportation trailer, which is widely used in container transportation, steel, machinery and equipment, construction materials and other bulk cargo transportation by road. This model is popular in the logistics industry because of its high carrying capacity, simple structure and strong adaptability.

3 Axles 40FT Flatbed Semi Trailer

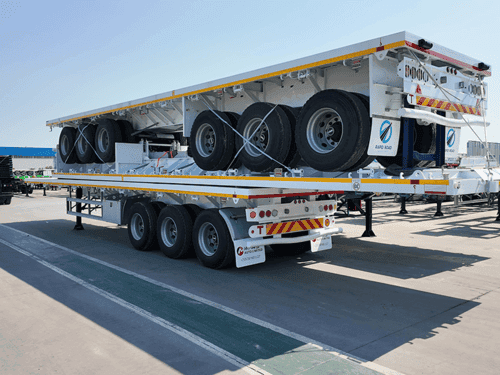

3 Axles 40FT Flatbed Semi Trailer-1

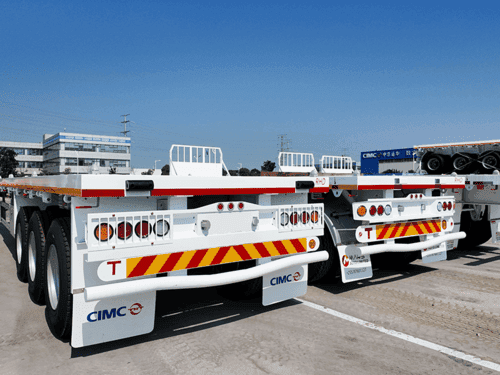

3 Axles 40FT Flatbed Semi Trailer-2

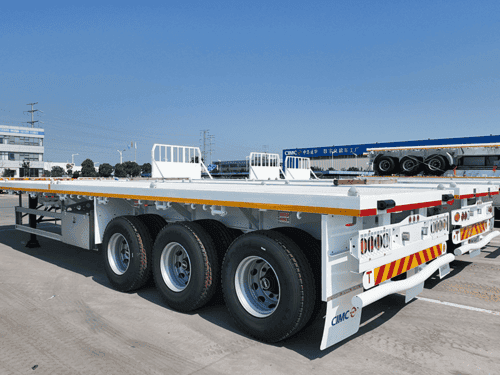

3 Axles 40FT Flatbed Semi Trailer-4

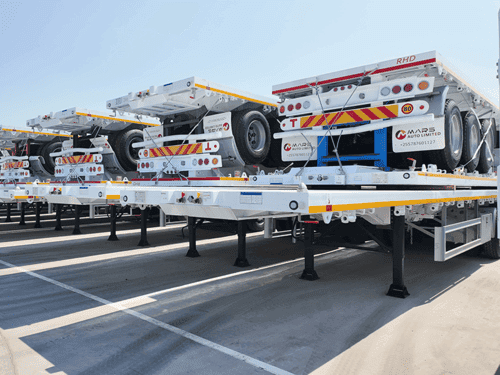

3 Axles 40FT Flatbed Semi Trailer-5

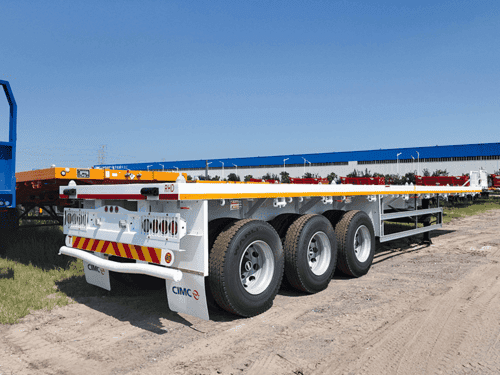

3 Axles 40FT Flatbed Semi Trailer-8

Models:

Tare  Weight7700kg
Overall  Length12400mm
Overall  Width2480mm
Payload45000kg
Axle3 axles
SuspensionHeavy duty mechanical suspension
Floor3mm checker plate
Leaf Spring13 piece Leaf spring
Tire12R22.5 tire with one spare tire. 13 pieces
INQUIRY
WHATSAPP

Products Showcases:

Features:

CIMC 3 Axles 40FT Flatbed Semi Trailer Specifications:

Tare  Weight7700kg
Overall  Length12400mm
Overall  Width2480mm
Payload45000kg
I Beam & ChassisHeavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,Height 500mm, Bottom Flange 16mm,width 140mm.
Axle3 axles
SuspensionHeavy duty mechanical suspension
Floor3mm checker plate
Leaf Spring13 piece Leaf spring
King PinJOST brand 2” Bolt-in King Pin
Landing GearJOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim9.0-22.5 wheel rim 13 pieces
Tire12R22.5 tire with one spare tire. 13 pieces
Twist Lock12 nos. of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container, the retractable central locks can be laid down.
Spare TireOne set of spare tire including a carrier
Braking SystemWABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
PaintingComplete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
AccessoriesOne standard tool box
Tare  Weight7700kg
Overall  Length12400mm
Overall  Width2480mm
Payload45000kg
I Beam & ChassisHeavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,Height 500mm, Bottom Flange 16mm,width 140mm.
Axle3 axles
SuspensionHeavy duty mechanical suspension
Floor3mm checker plate
Leaf Spring13 piece Leaf spring
King PinJOST brand 2” Bolt-in King Pin
Landing GearJOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim9.0-22.5 wheel rim 13 pieces
Tire12R22.5 tire with one spare tire. 13 pieces
Twist Lock12 nos. of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container, the retractable central locks can be laid down.
Spare TireOne set of spare tire including a carrier
Braking SystemWABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
PaintingComplete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
AccessoriesOne standard tool box

Performance

CIMC 3 Axles 40FT Flatbed Semi Trailer features a robust tri-axle design, supporting up to 60 tons. Equipped with durable suspension, dual-line air brakes, and reinforced flatbed, it ensures stable handling, efficient loading, and safe transport of containers, heavy machinery, and bulk cargo over long distances.

3 Axles 40FT Flatbed Semi Trailer-5

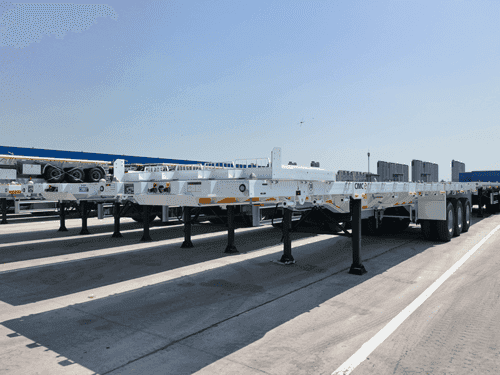

3 Axles 40FT Flatbed Semi Trailer-7
3 Axles 40FT Flatbed Semi Trailer-1
